Frequency Response (-6 dB)
70 Hz – 50 kHz
Sensitivity (1W@1M)
87 dB
Nominal Impedance
8 ohms
Maximum SPL
106.5 dBA
Power Handling (RMS)
75 W Full range (120 W with crossover set to 100 Hz @ 12 dB/Octave)
Recommended Amplifier Requirements
10 – 120 W

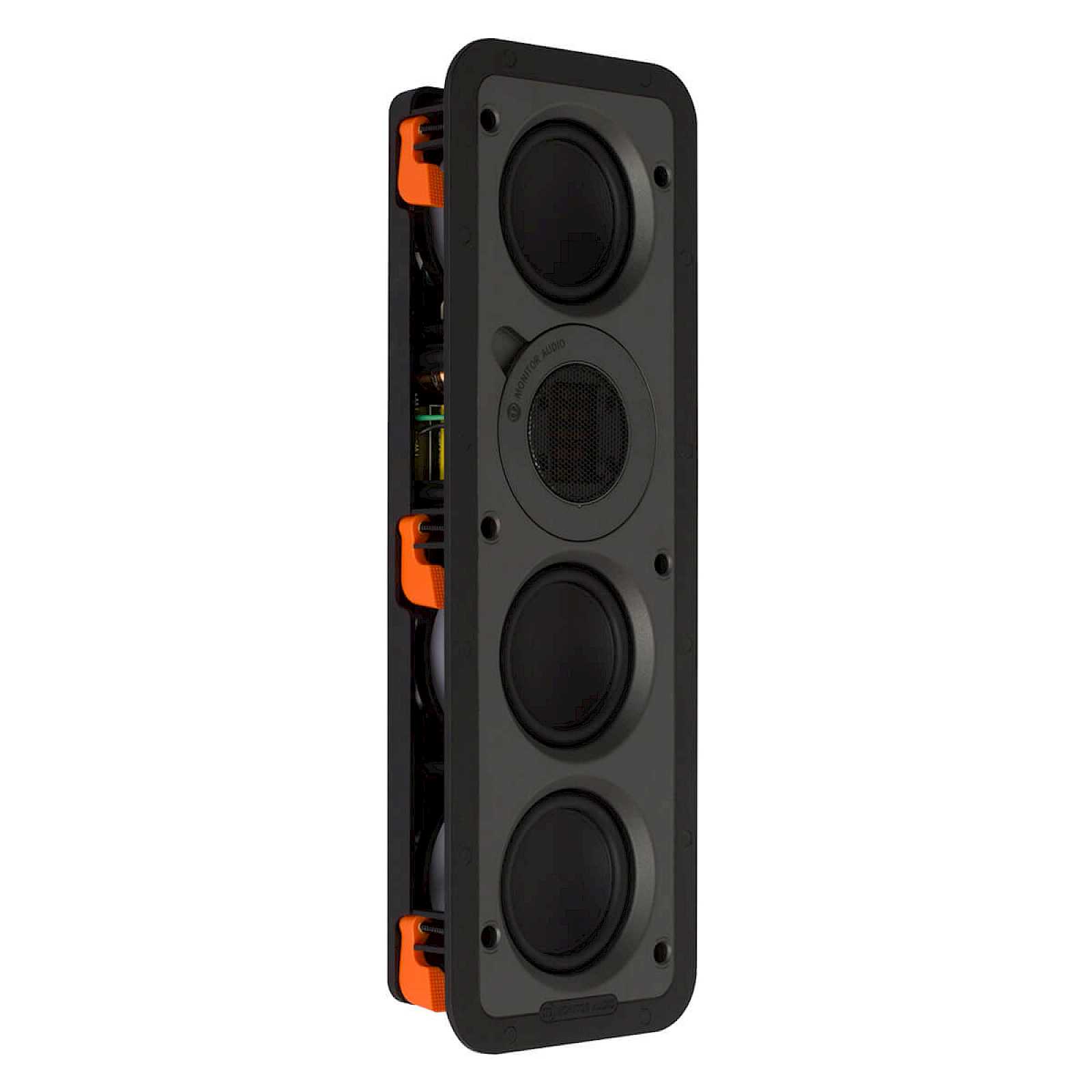

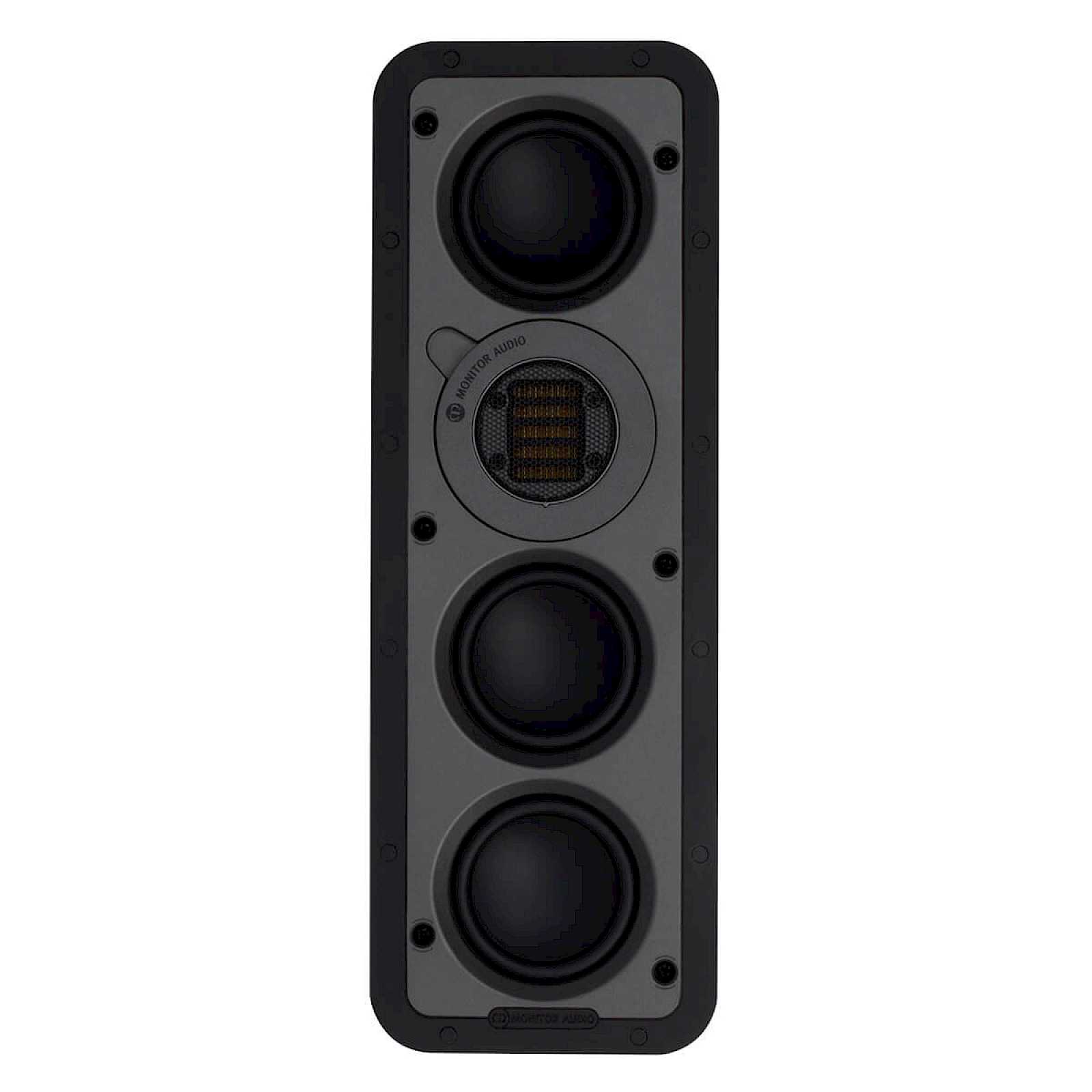

Drive Unit Complement
3 x 3″ dished C-CAM cone bass-mid drivers
1 x MPD High frequency transducer – rotatable for portrait or landscape application
Crossover Recommendation using AVR/Processor
100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
Overall Dimensions
385 x 140.5 mm (15 x 51/2“)
Overall Depth (Including Grille)
54.25 mm (21/8“)
Cut-Out Dimensions
346 x 101 mm (131/2 x 4″)
Mounting Depth
50 mm (2″)
Connection
Gold Plated Sprung push terminals – For bare wire connection up to 3 mm2

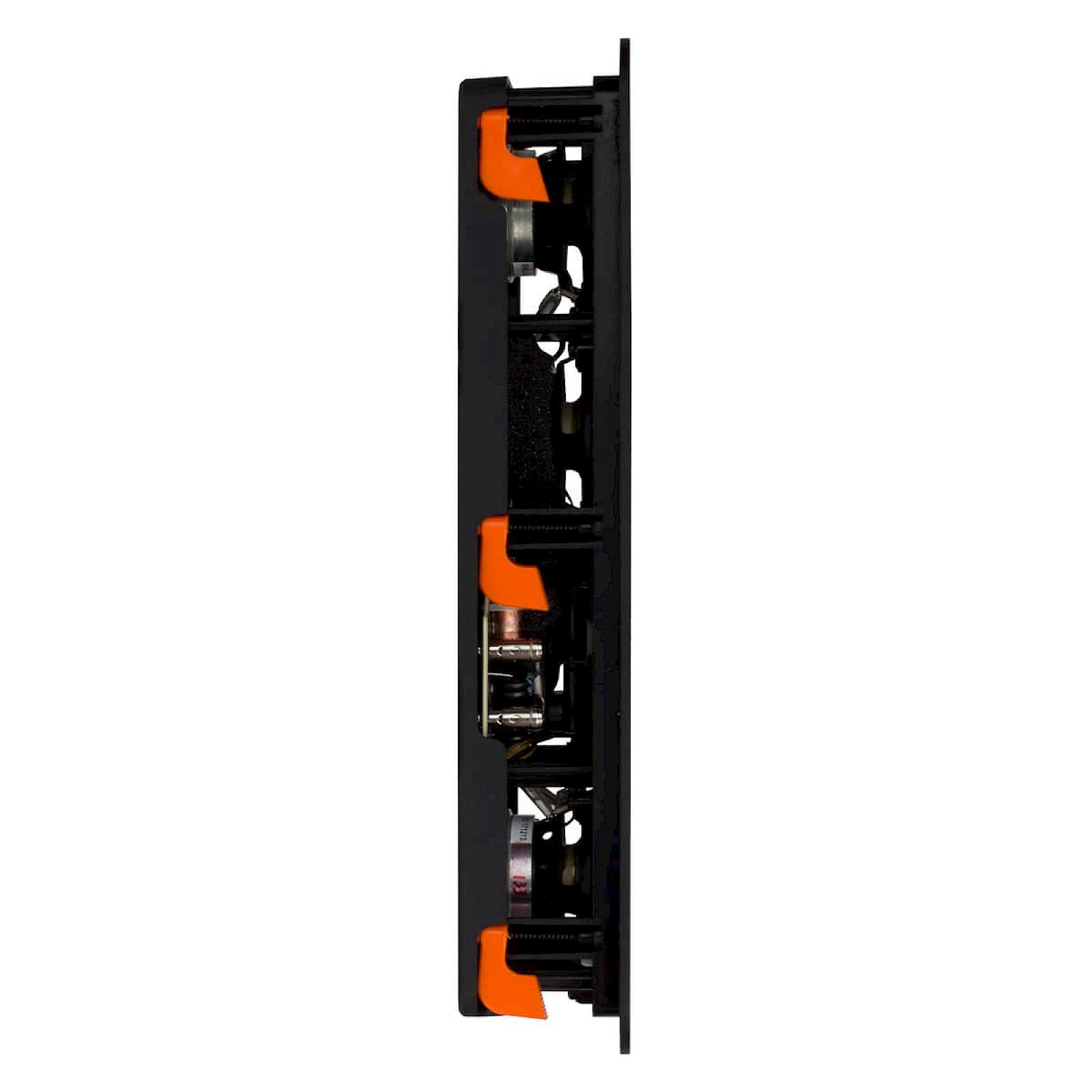

Fixing Type
6 position Tri-Grip dog leg fixings
Weight
1.1 kg (2 lb 6 oz)
Construction Material

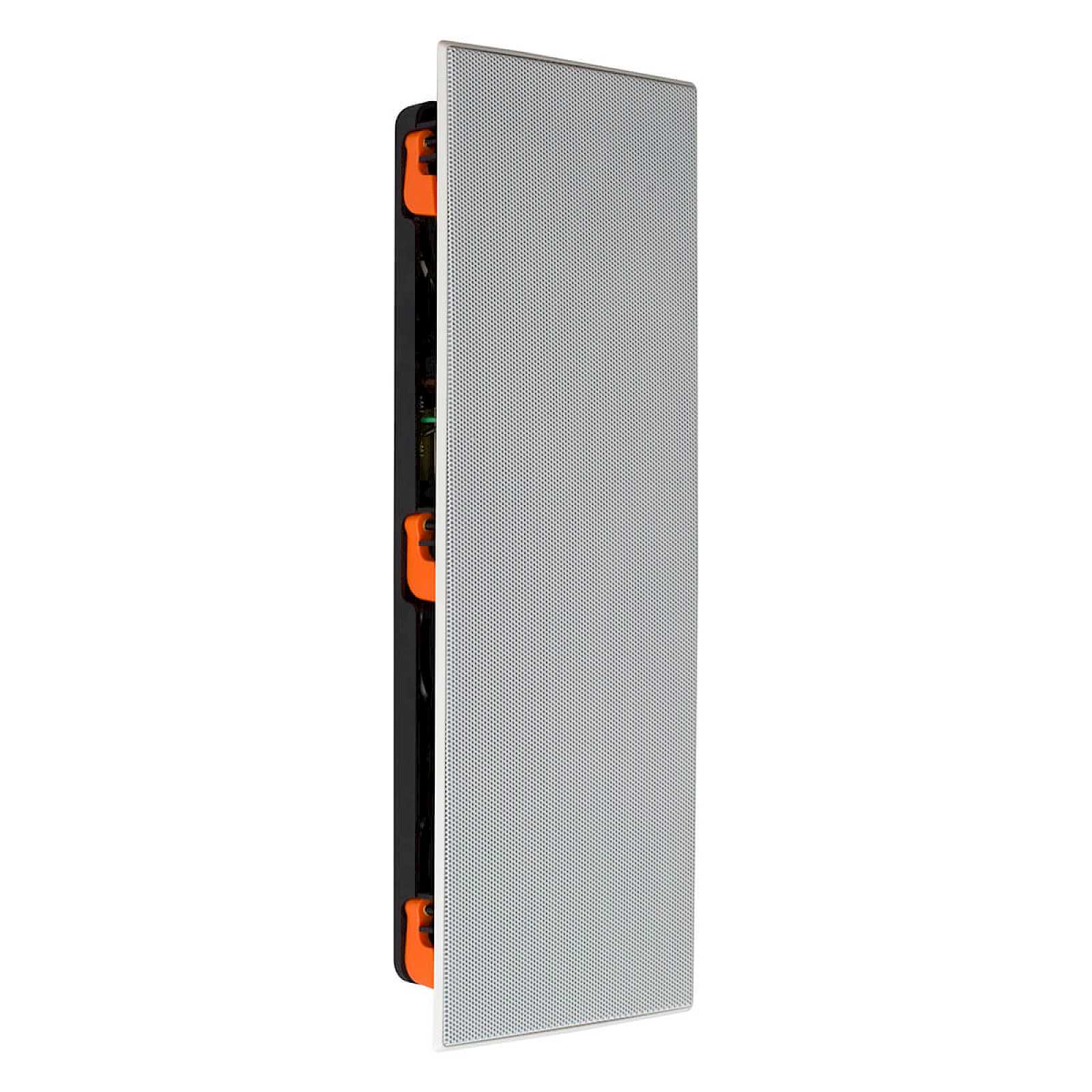

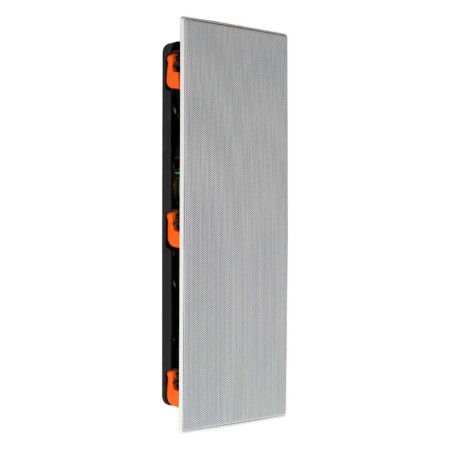

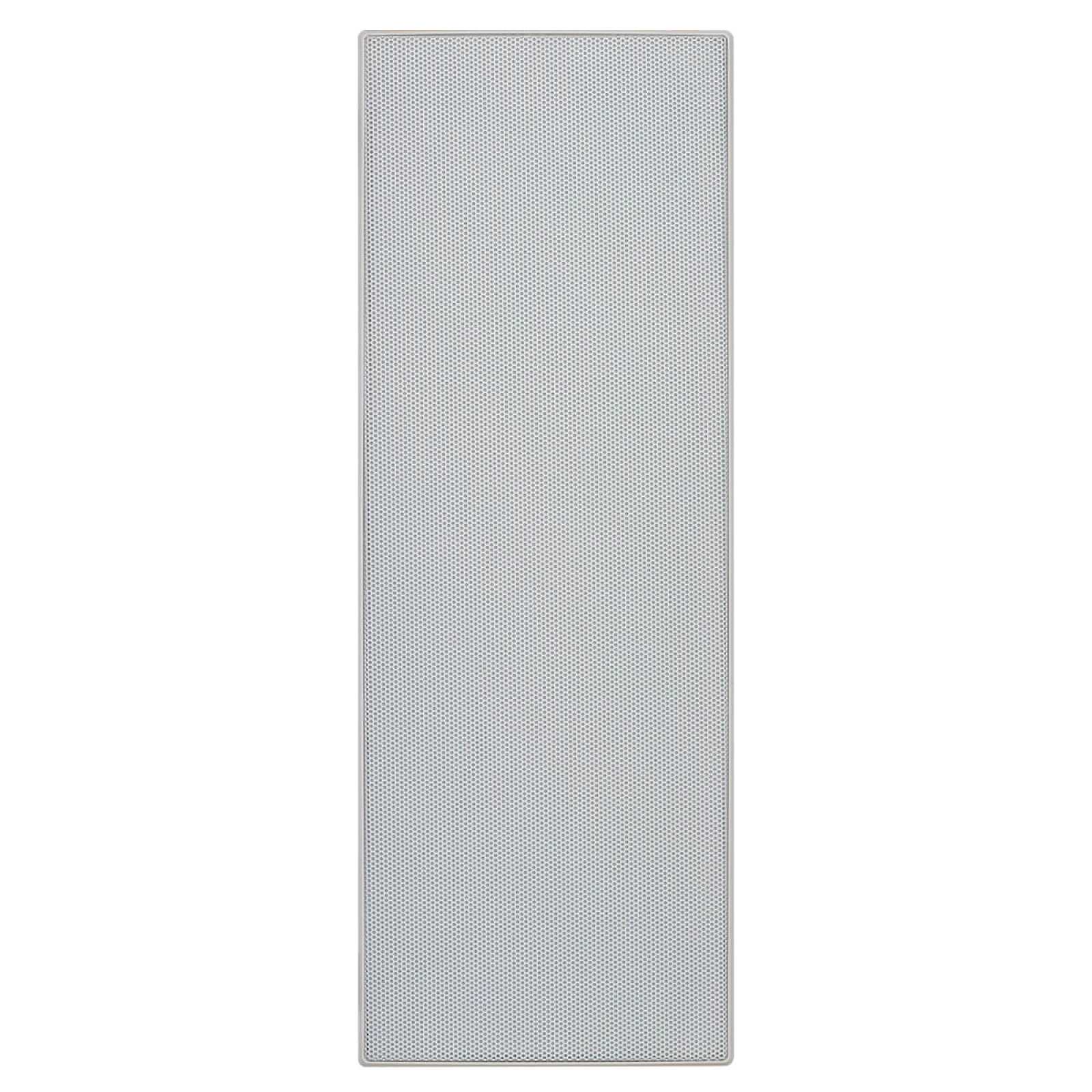

Mineral filled ABS Plastic, RoHS2 Compliant. Painted steel grille
Pre-Construction Bracket
Sold As
Single Unit
Warranty
Lifetime
