System Format
3–Way
Channels
1
Frequency Response, Installed (-6dB)
60 Hz – 35 kHz
Nominal Impedance
6 ohm
Minimum Impedance (20Hz to 20kHz)
4.8 Ohm @ 1 kHz
(4.3 Ohm @ 15 kHz)
Sensitivity (2.83Vrms@1m, Installed)
87 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
118 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
100 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
40 – 150 W

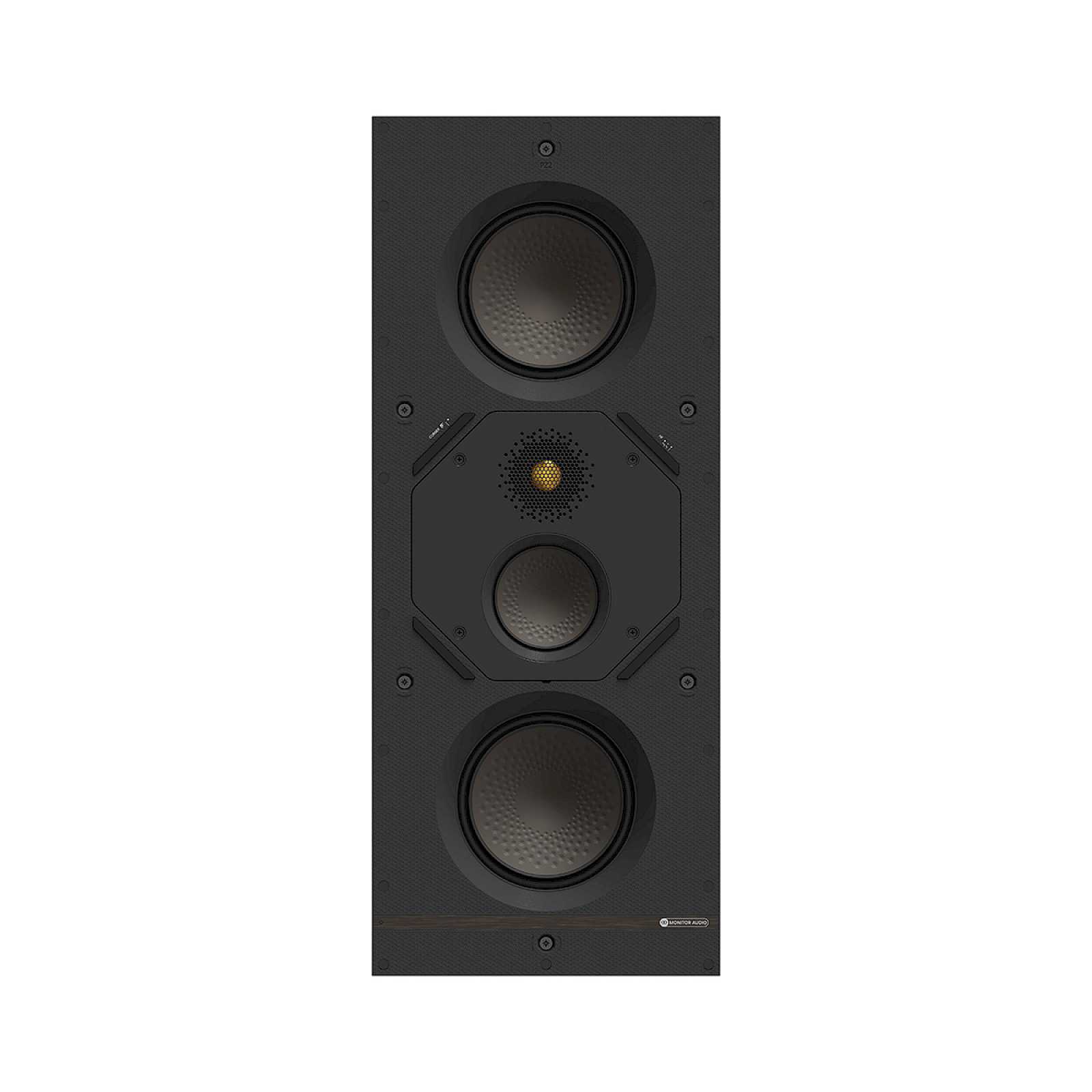

Drive Unit Complement
2 x 5″ (127 mm) RST II bass driver
1 x 3″ (76 mm) RST II mid-range driver
1 x 1″ (25 mm) C-CAM tweeter
Crossover Frequency
LF/HF: 550 kHz
MF/HF: 3 kHz
Bass Alignment
Sealed
Mounting Depth
97 mm (313/16“)
Cutout L x W
527 x 198 mm (203/4 x 713/16“)
External Dimensions (Including Grille (H x W x D))
560 x 231 x 102 mm (221/16 x 91/8 x 41/64“)
Weight (each)
4.4 kg (9 lb 11 oz)
Pre-Construction Bracket
WM-B
Cabinet Finish
Matte black & Orange & Bronze
Sold As
Single Unit
Corner Switch
On/Off
HF Switch
– /0/ +
Warranty
Lifetime
