THX Certification
THX® Certified Ultra
System Format
3 Way
Sensitivity (2.83 Vrms @ 1 M)
90 dB
Maximum Linear SPL**** (@1m, free space)
Continuous 109 dB, Peak 122 dB
Power Handling (RMS)
Continuous 350 W, Peak* 1400 W
Nominal Impedance
4 Ohms
Minimum Impedance (20 Hz – 20 kHz)
3.8 Ohms
Recommended Low Frequency Crossover Frequency
40 – 80 Hz (High Pass)
Recommended Amp Requirements (RMS)
200 – 1400 W (IA750-2 or IA750-4)
Bass Alignment
Ported**
Port Tuning Frequency
38 Hz**
LF Extension, In Wall, With Port Bungs (- 6dB)
42 Hz
LF Extension, In Free Space, No Port Bungs (- 6dB)
42 Hz
HF Extension (-6dB)
>30 kHz

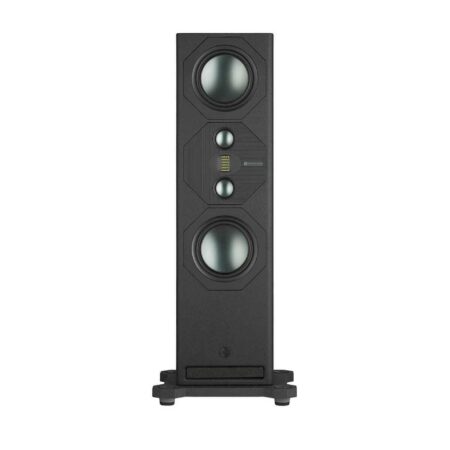

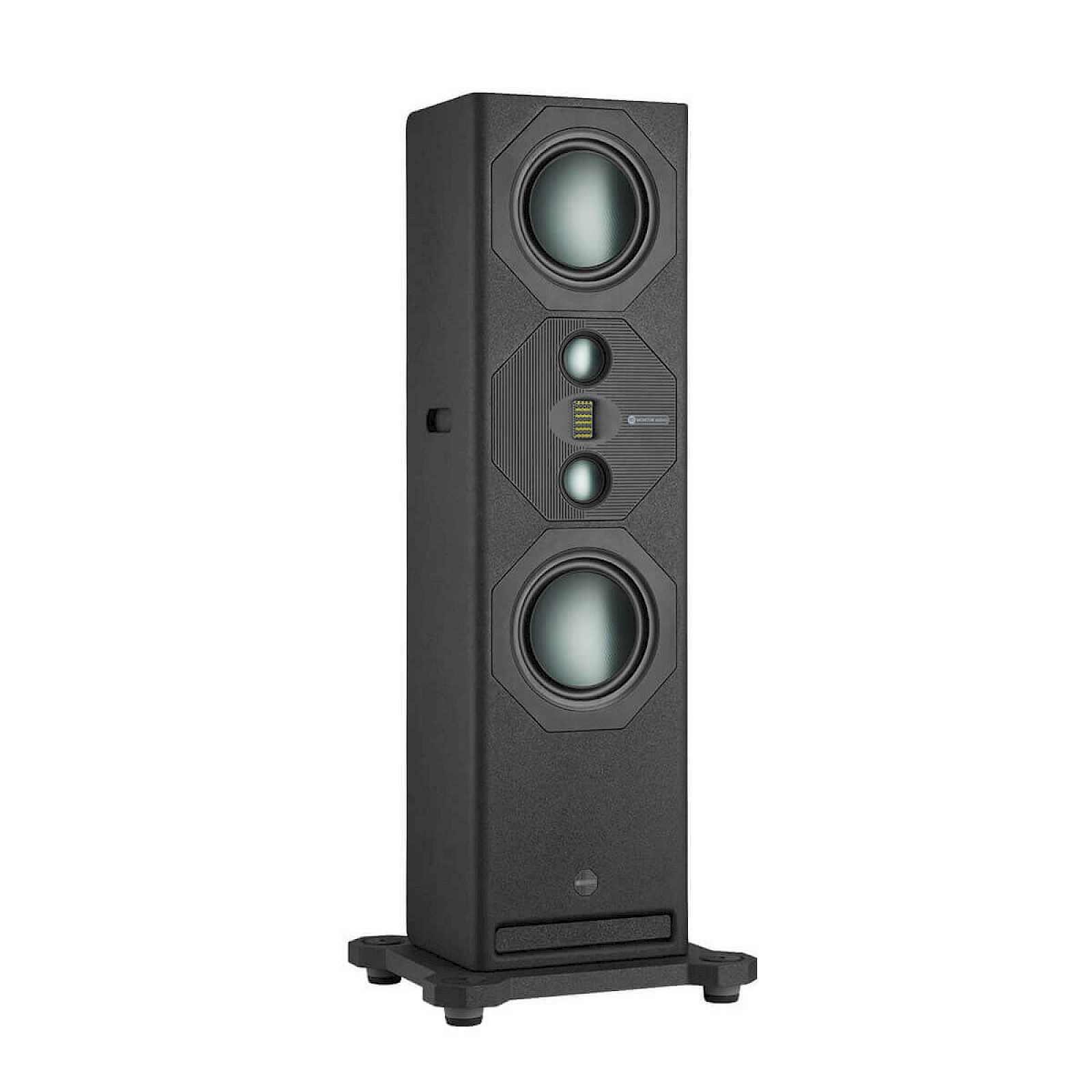

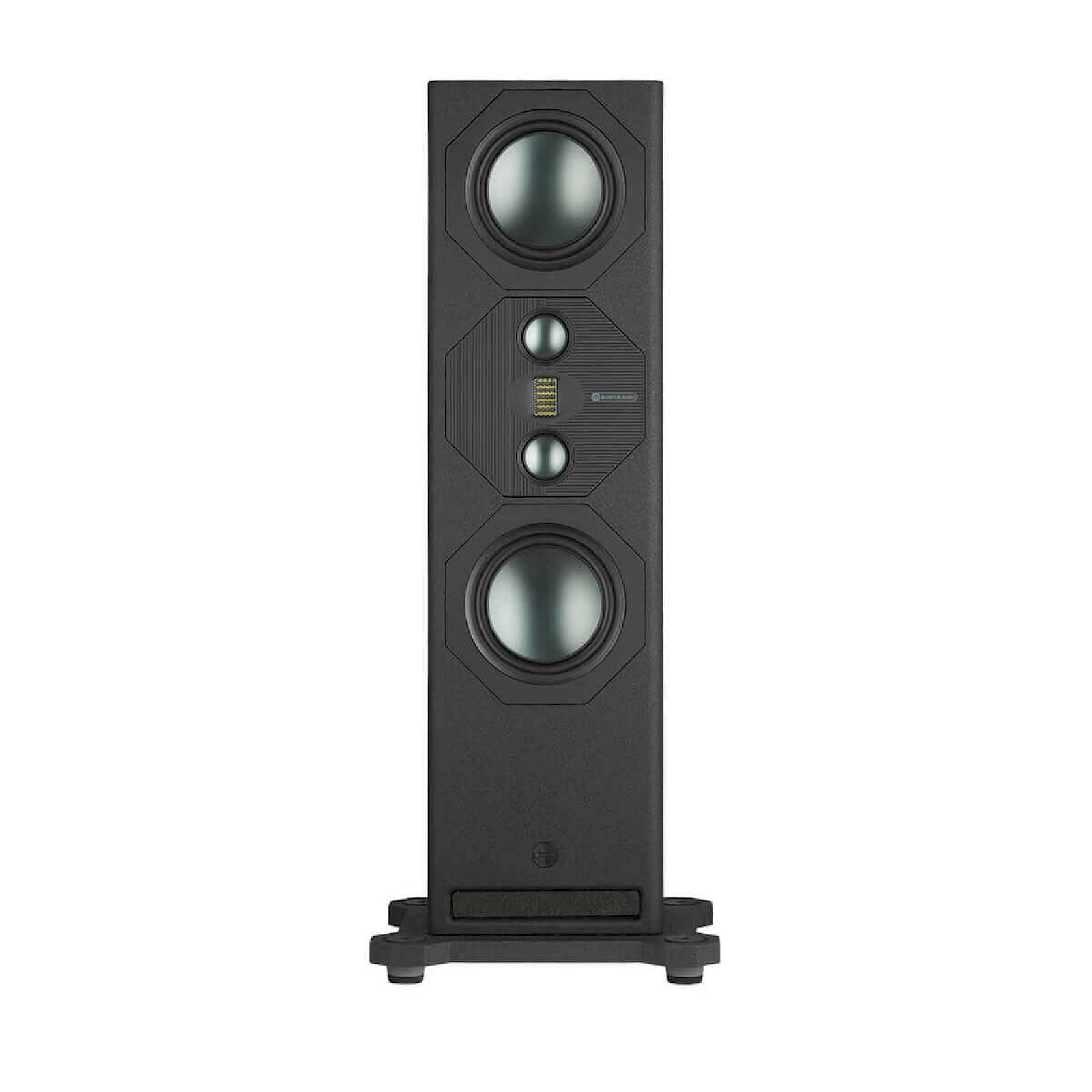

Drive Unit Complement

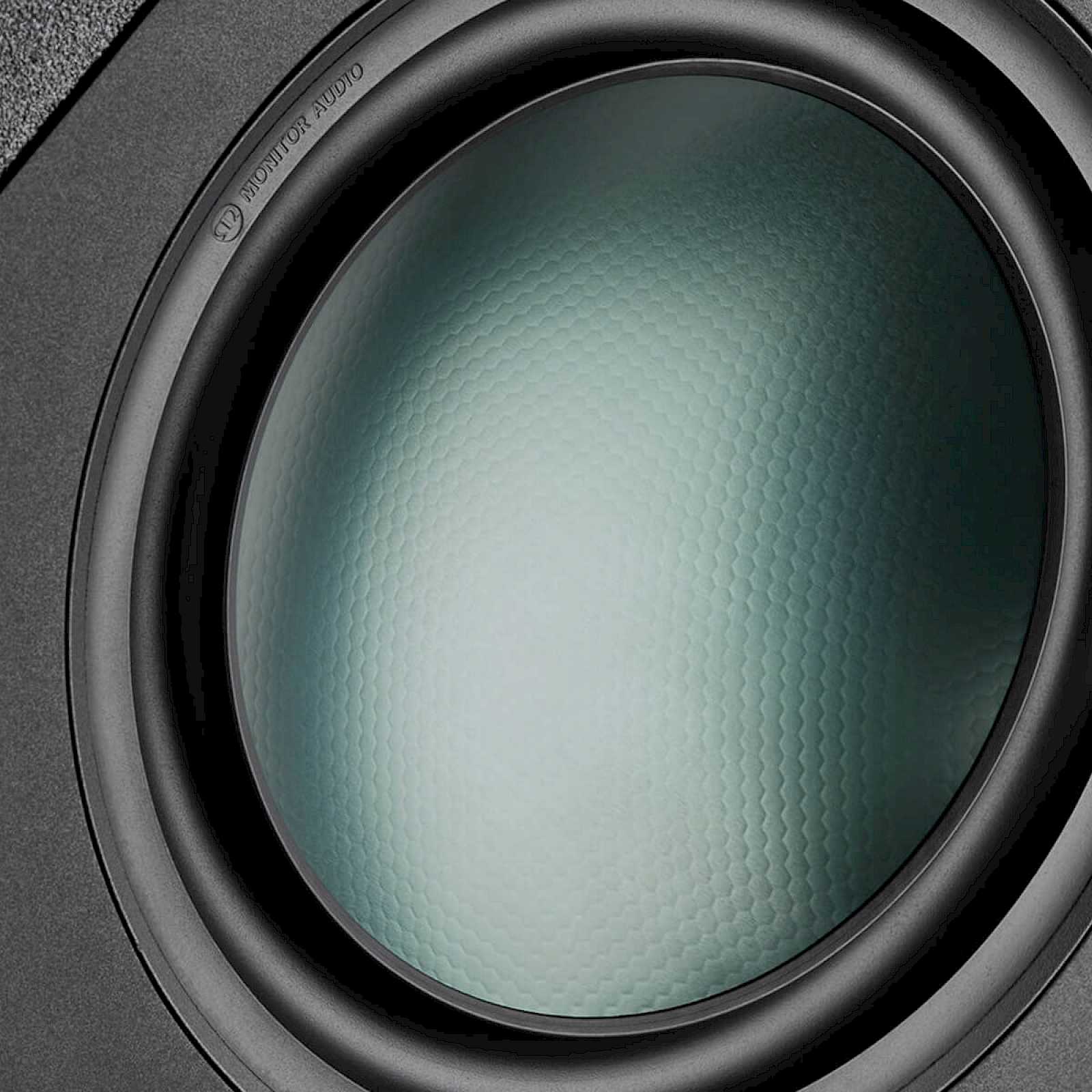

2 x 8″ RDT Driver
2 x 2.5″ C-CAM Driver
1 x MPD Transducer

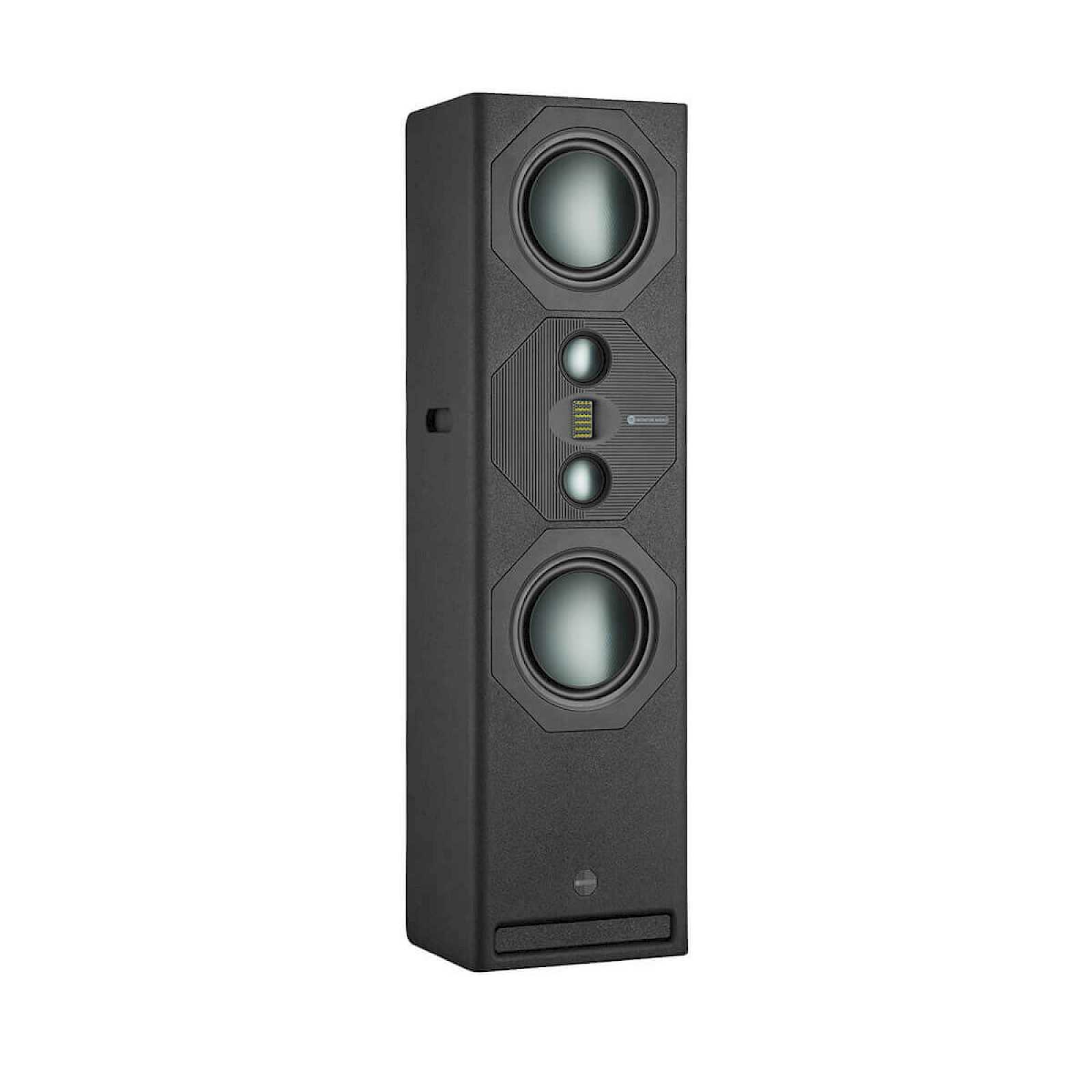

External Dimensions (Cabinet Only (H x W x D))
1080 x 300 x 240 mm (421/2 x 1113/16 x 97/16“)
External Dimensions (Inc Grille) (H x W x D)
1080 x 300 x 253.6 mm (421/2 x 1113/16 x 10″)
Max External Dimensions (Inc all Fittings) (H x W x D)
1132 x 438 x 253.6 mm (449/16 x 171/4 x 10″)
Weight
40.4 kg (88 lb 14 oz)
Conditions
* Calculated from a peak voltage, this is not a true power figure but useful for comparisons.
** When used in an In-Wall or On-Wall configuration it is recommended to use the fitted port bungs to control bass output. This will effectively make the product a sealed box.
*** Band limited with Low pass at 200 Hz, should only be used with IA800-2C and the correct speaker profile.
**** Tested with a music like noise signal with distortion and power compression remaining below audible limits.
THX
THX® Certified Loudspeakers.
THX® and the THX® Logo are the property of THX® Ltd., registered in the U.S. and other countries.
Warranty
Lifetime
