THX Certification
THX® Certified Ultra
System Format
3 Way
Sensitivity (2.83 Vrms @ 1 M)
89 dB
Maximum Linear SPL**** (@1m, free space)
Continuous 103 dB, Peak 116 dB
Power Handling (RMS)
Continuous 200 W, Peak* 800 W
Nominal Impedance
4 Ohms
Minimum Impedance (20 Hz – 20 kHz)
3.8 Ohms
Recommended Low Frequency Crossover Frequency
80 – 100 Hz (High Pass)
Recommended Amp Requirements (RMS)
100 – 800 W (IA750-2 or IA750-4)
Bass Alignment
Ported**
Port Tuning Frequency
67 Hz**
LF Extension, In Wall, With Port Bungs (- 6dB)
48 Hz
LF Extension, In Free Space, No Port Bungs (- 6dB)
65 Hz
HF Extension (-6dB)
>30 kHz

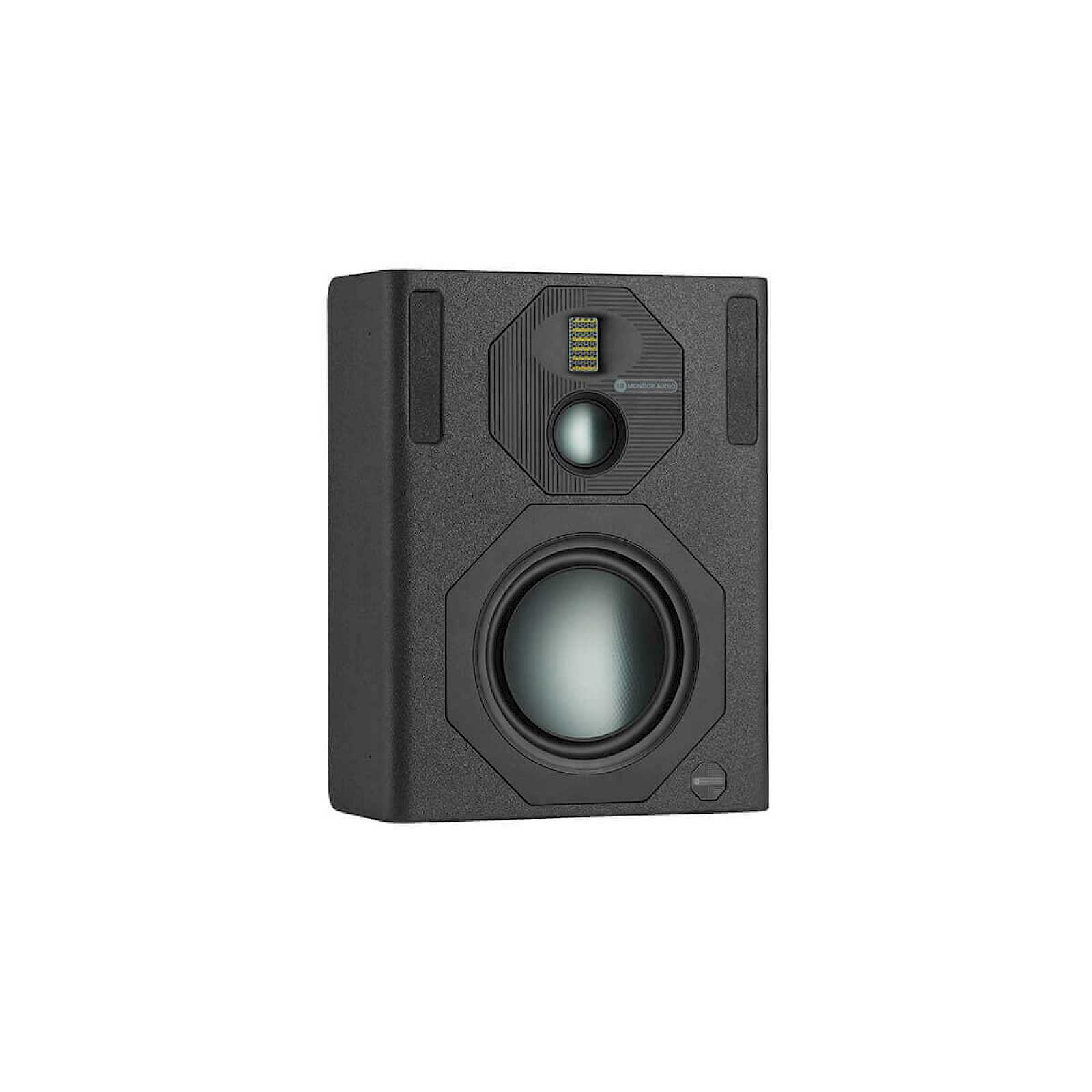

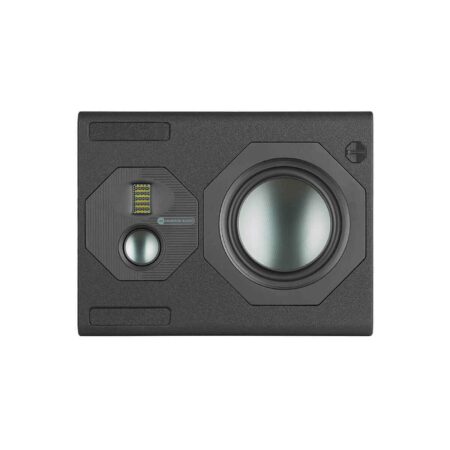

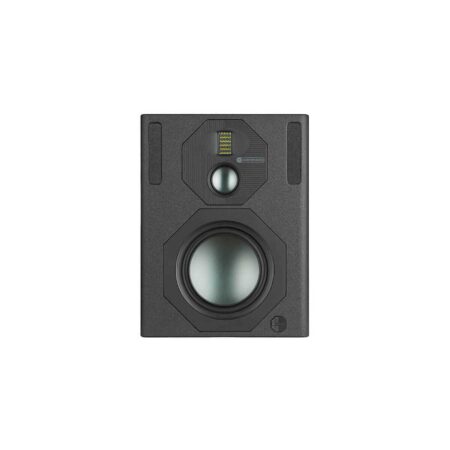

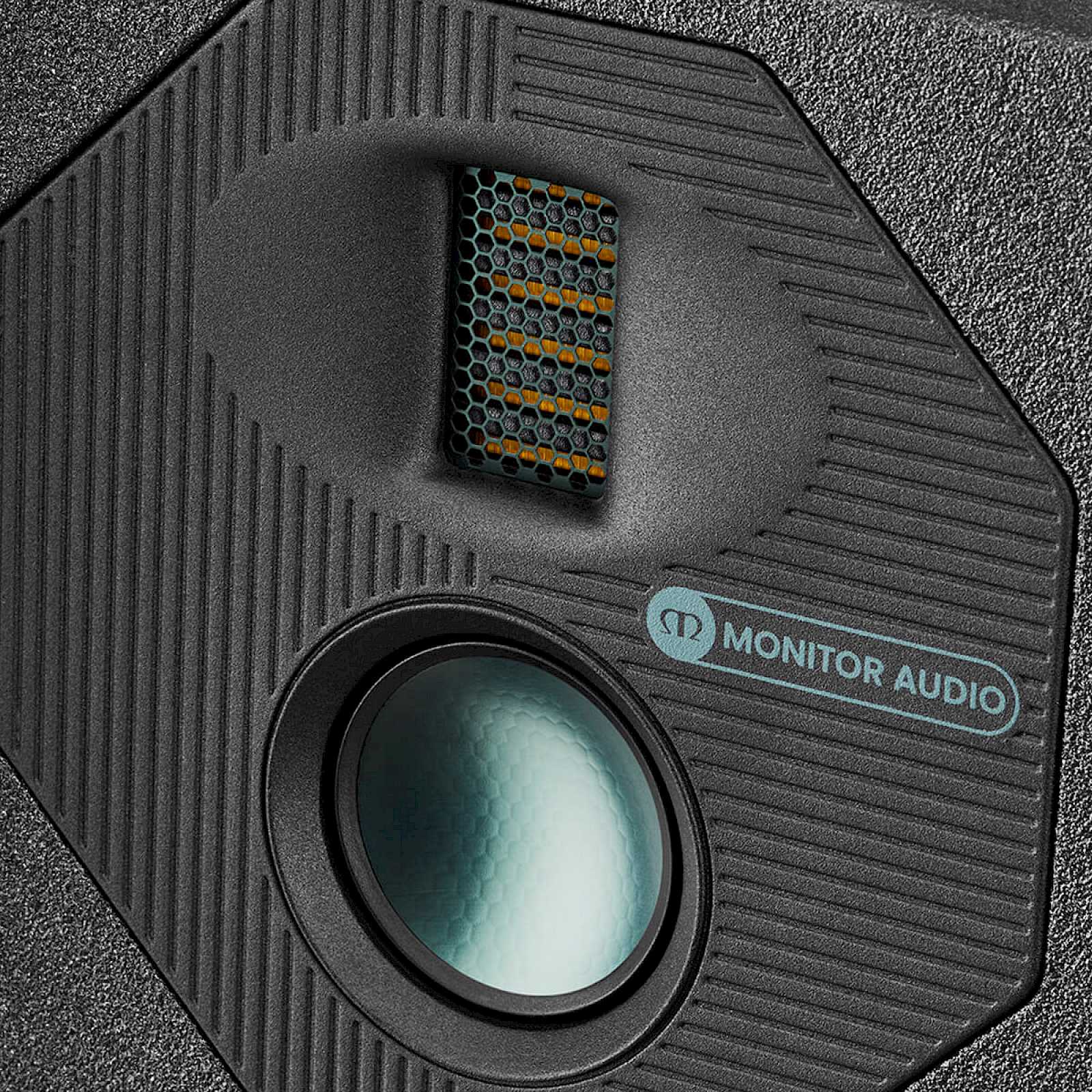

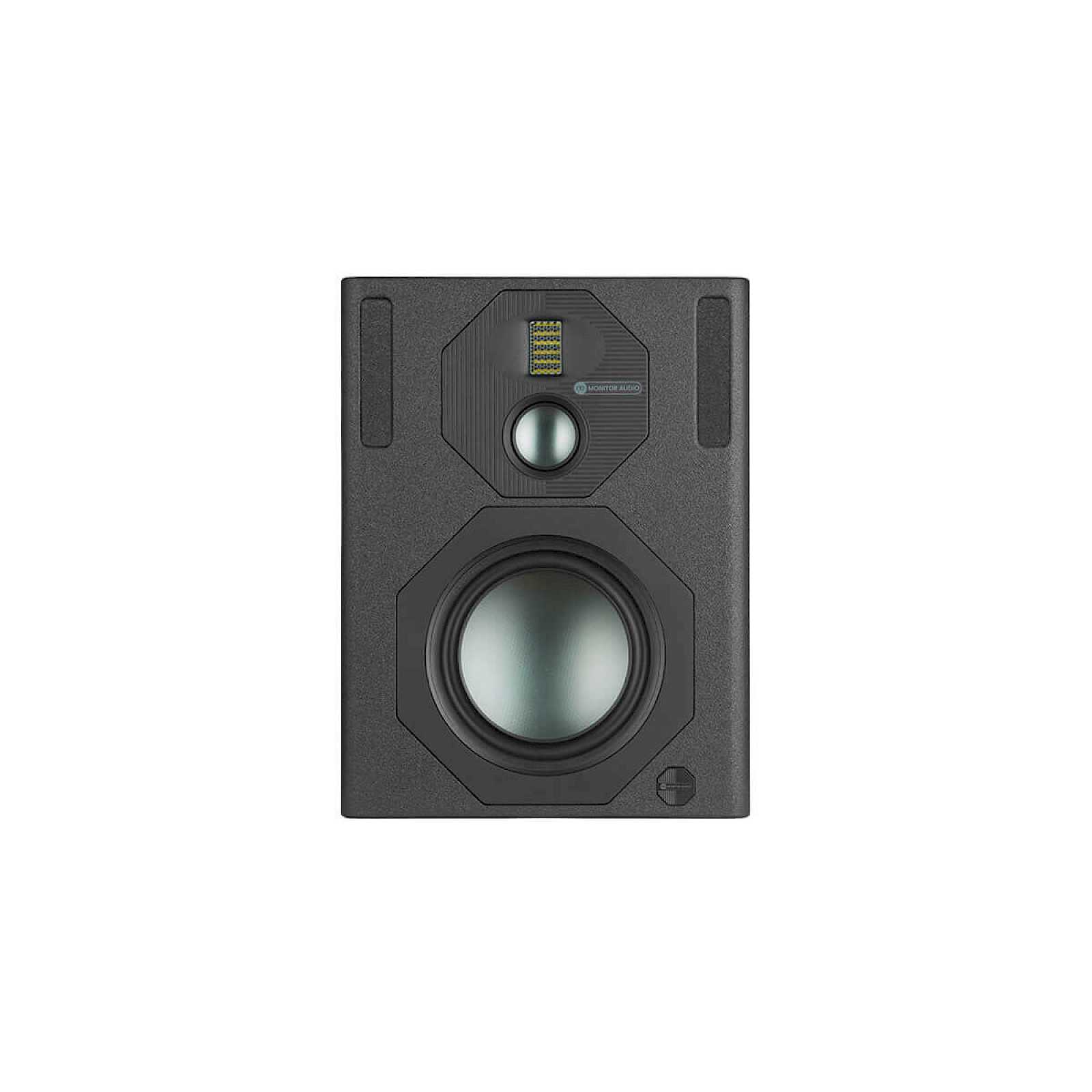

Drive Unit Complement
1 x 8″ RDT Driver
1 x 2.5″ C-CAM Driver
1 x MPD Transducer
External Dimensions (Cabinet Only (H x W x D))
460 x 350 x 160 mm (181/8 x 133/4 x 65/16“)

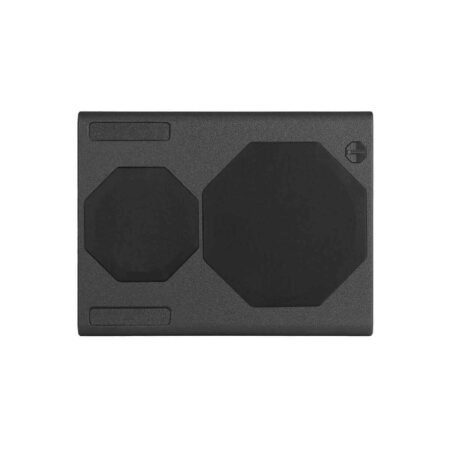

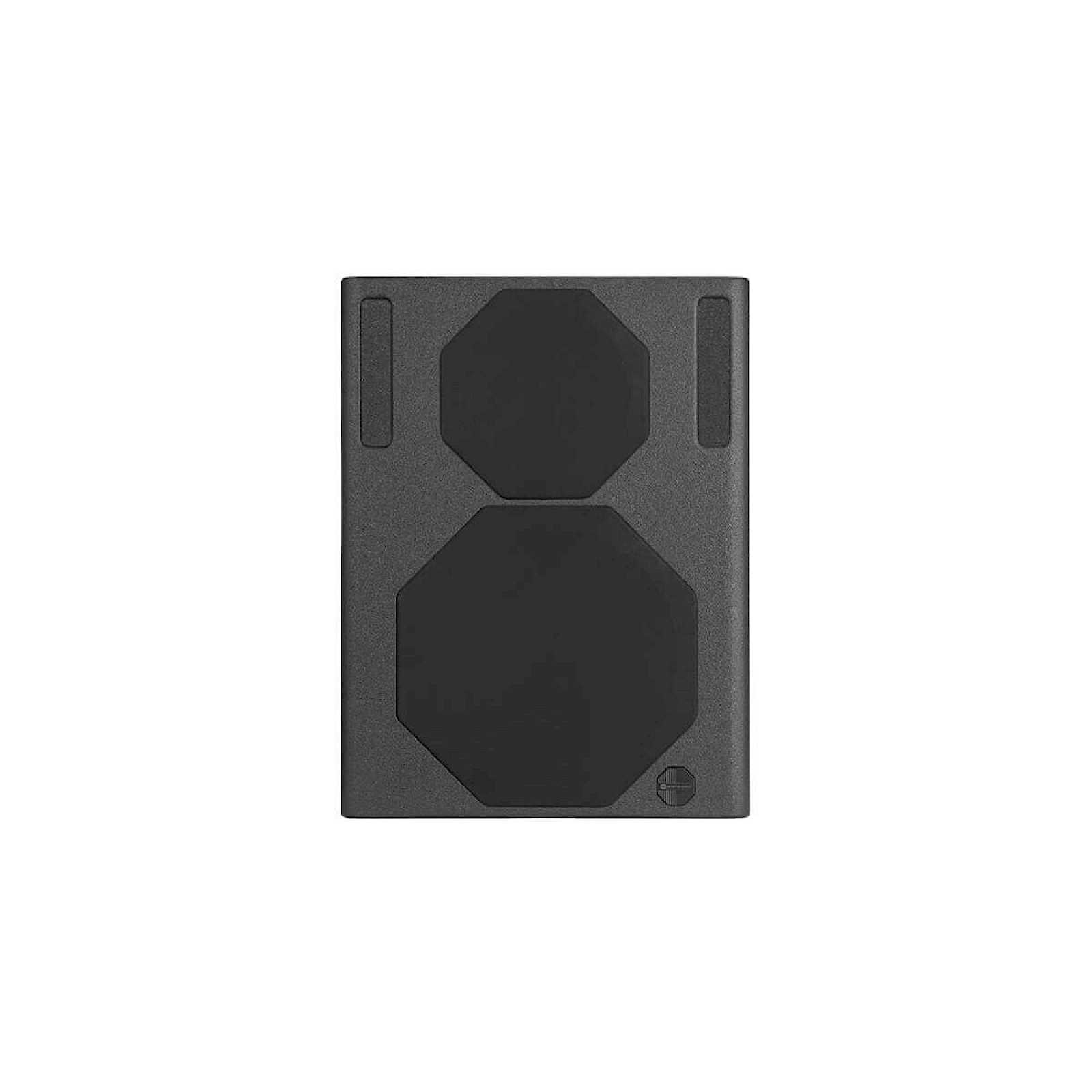

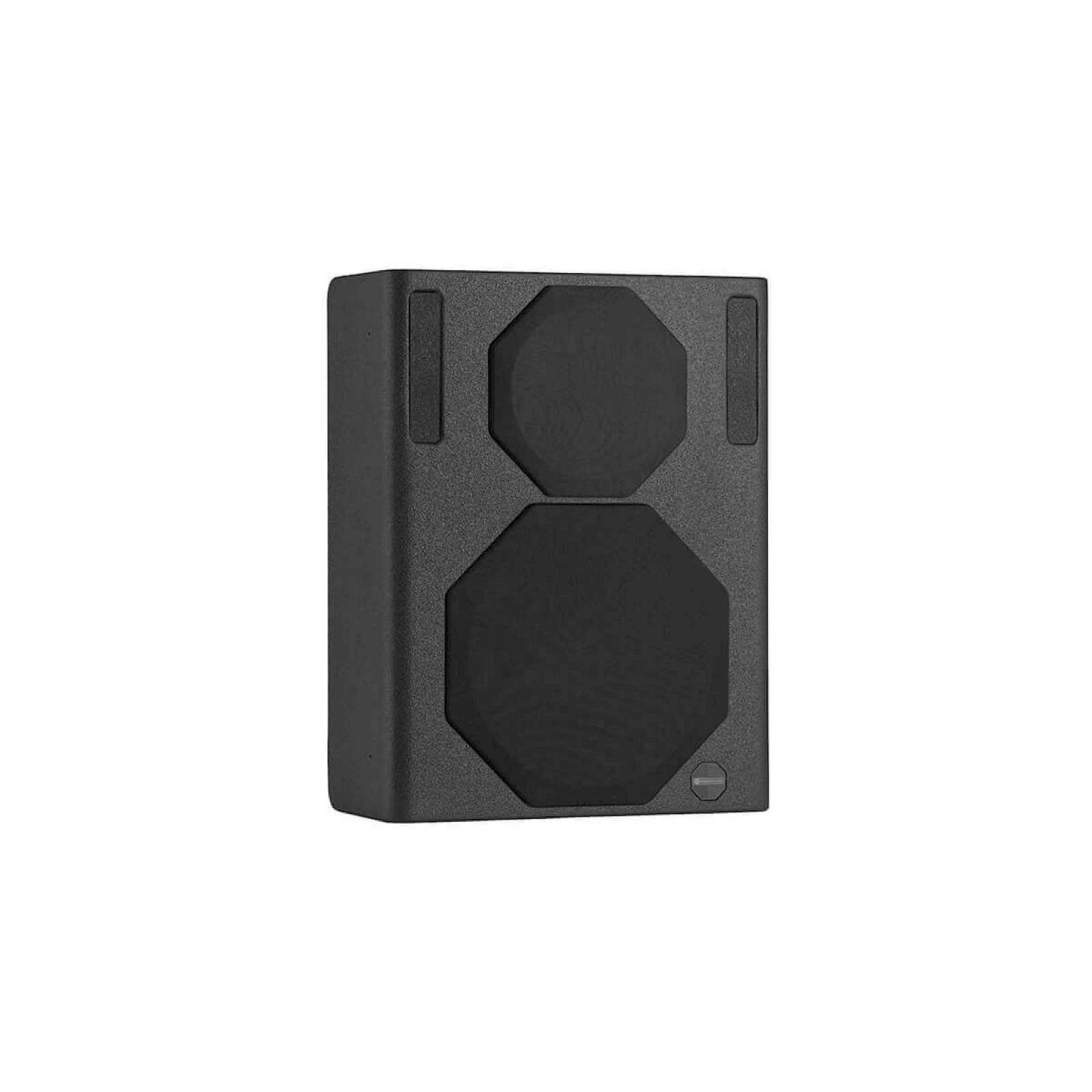

External Dimensions (Inc Grille) (H x W x D)
460 x 350 x 174.1 mm (181/8 x 133/4 x 67/8“)
Weight
18.4 kg (40 lb 8 oz)
Conditions
* Calculated from a peak voltage, this is not a true power figure but useful for comparisons.
** When used in an In-Wall or On-Wall configuration it is recommended to use the fitted port bungs to control bass output. This will effectively make the product a sealed box.
*** Band limited with Low pass at 200 Hz, should only be used with IA800-2C and the correct speaker profile.
**** Tested with a music like noise signal with distortion and power compression remaining below audible limits.
THX
THX® Certified Loudspeakers.
THX® and the THX® Logo are the property of THX® Ltd., registered in the U.S. and other countries.
Warranty
Lifetime
