Triode TRV-88XR

2 150 000

Интегральный усилитель

Доступно для предзаказа

Чат по Whatsapp
Артикул: triode_trv-88xr Категории: , Метка: Brand:


KT88 class AB push-pull integrated amplifier

Circuit system KT88 class AB push-pull integrated amplifier
Tubes KT88 x 4, 12AX7 x 1, 12AU7 x 2
Bias Fixed bias, adjustable with bias meter
Output power 35W+35W at 8 ohms
Frequency response 10Hz-90kHz(-4dB)
S/N ratio 90dB
Input sensitivity LINE 340mV, MM 2.5mV
Input impedance LINE 100k ohm, MM 47k ohm

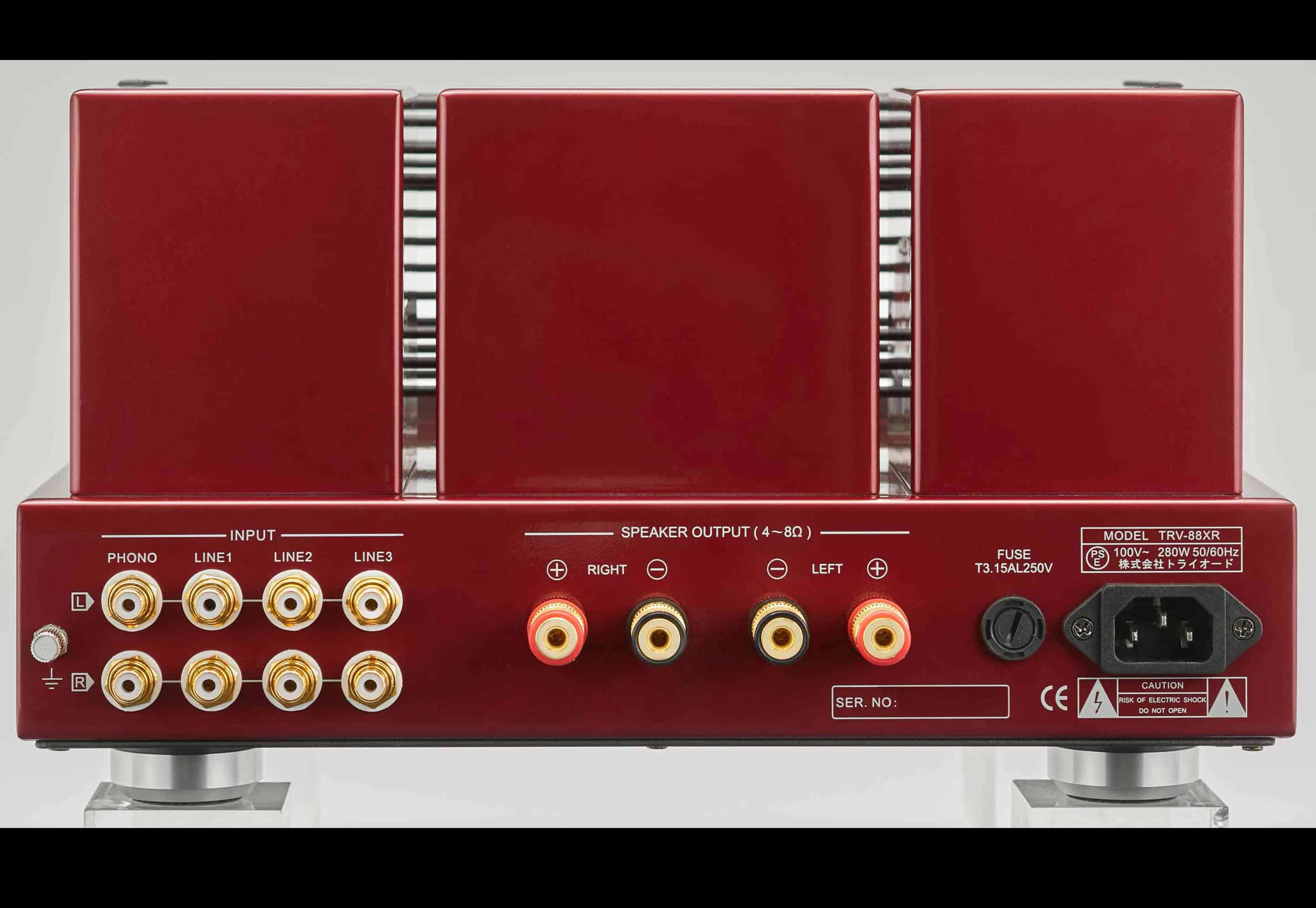

Input terminals RCA unbalanced x 4(LINE1-3 , MM x 1)
Output terminals
Speaker output terminals 4 ~8 ohms
Equipped components High quality speaker terminal

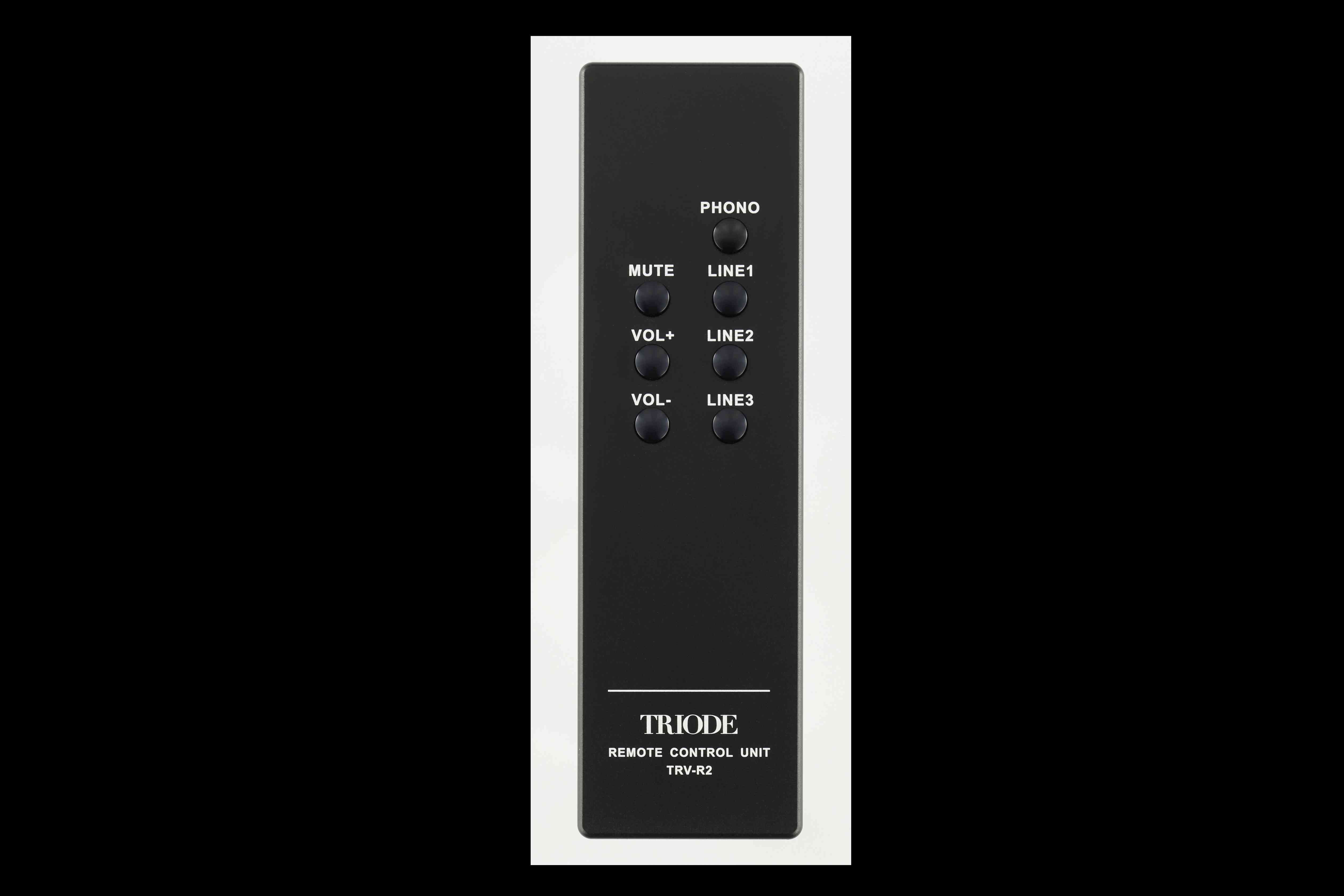

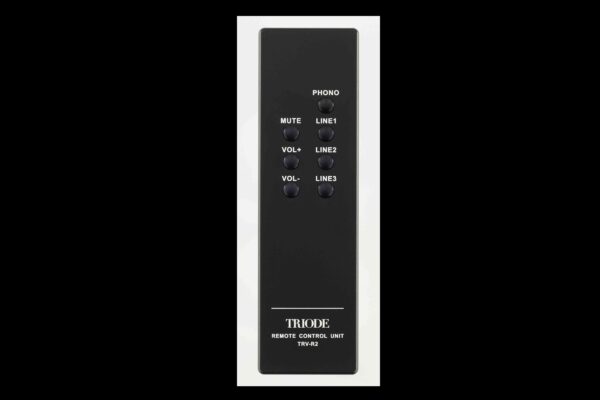

Other functions Remote control (Volume , Mute, Input select)

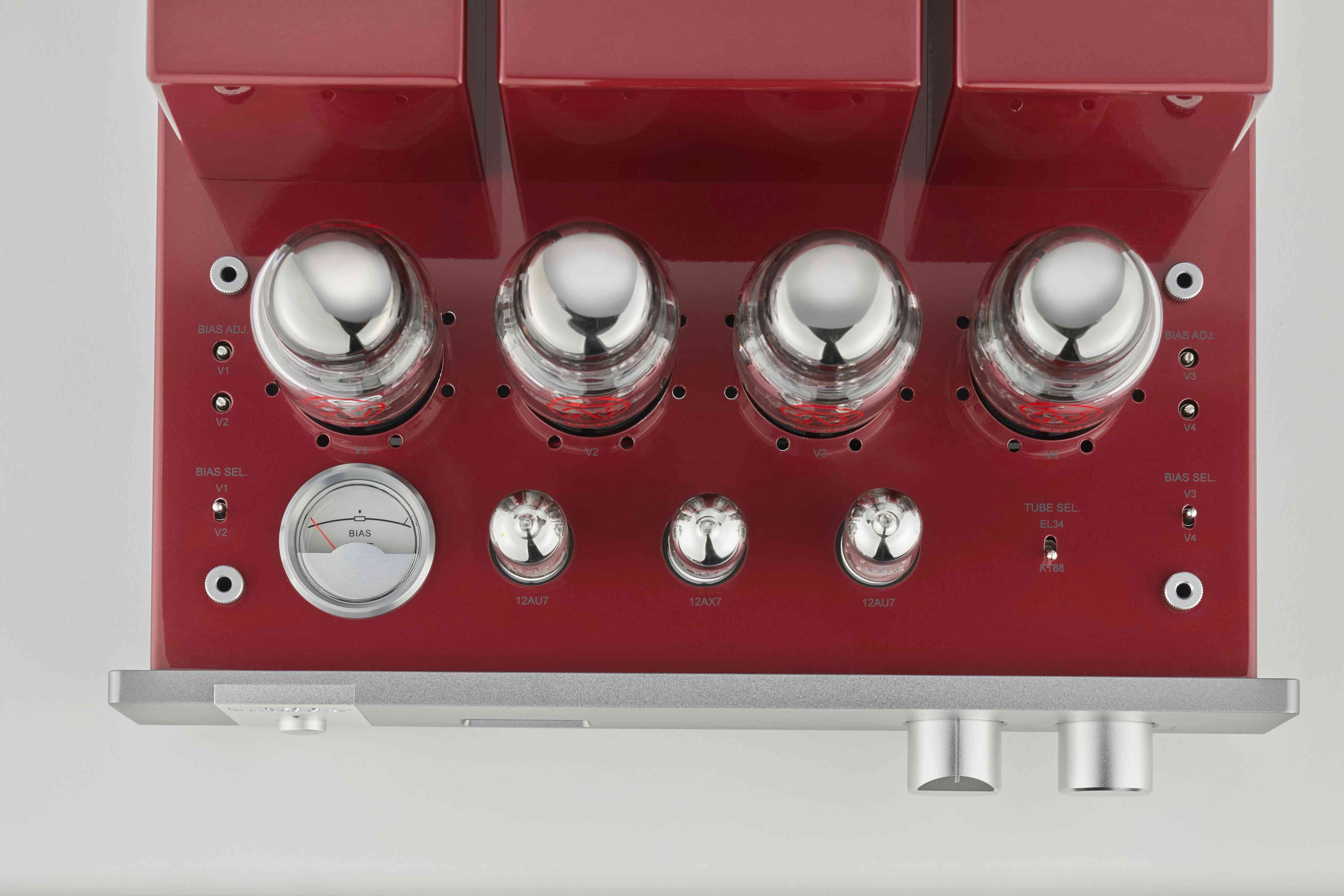

Bias adjuster with bias meter

EL34 can be used with tube select switch(KT88/EL34)

Power consumption 280W (120W/No signal)
Dimensions W345mm x D320mm x H185mm
Weight 17.0kg
Accessories Tube cover, Remote control
