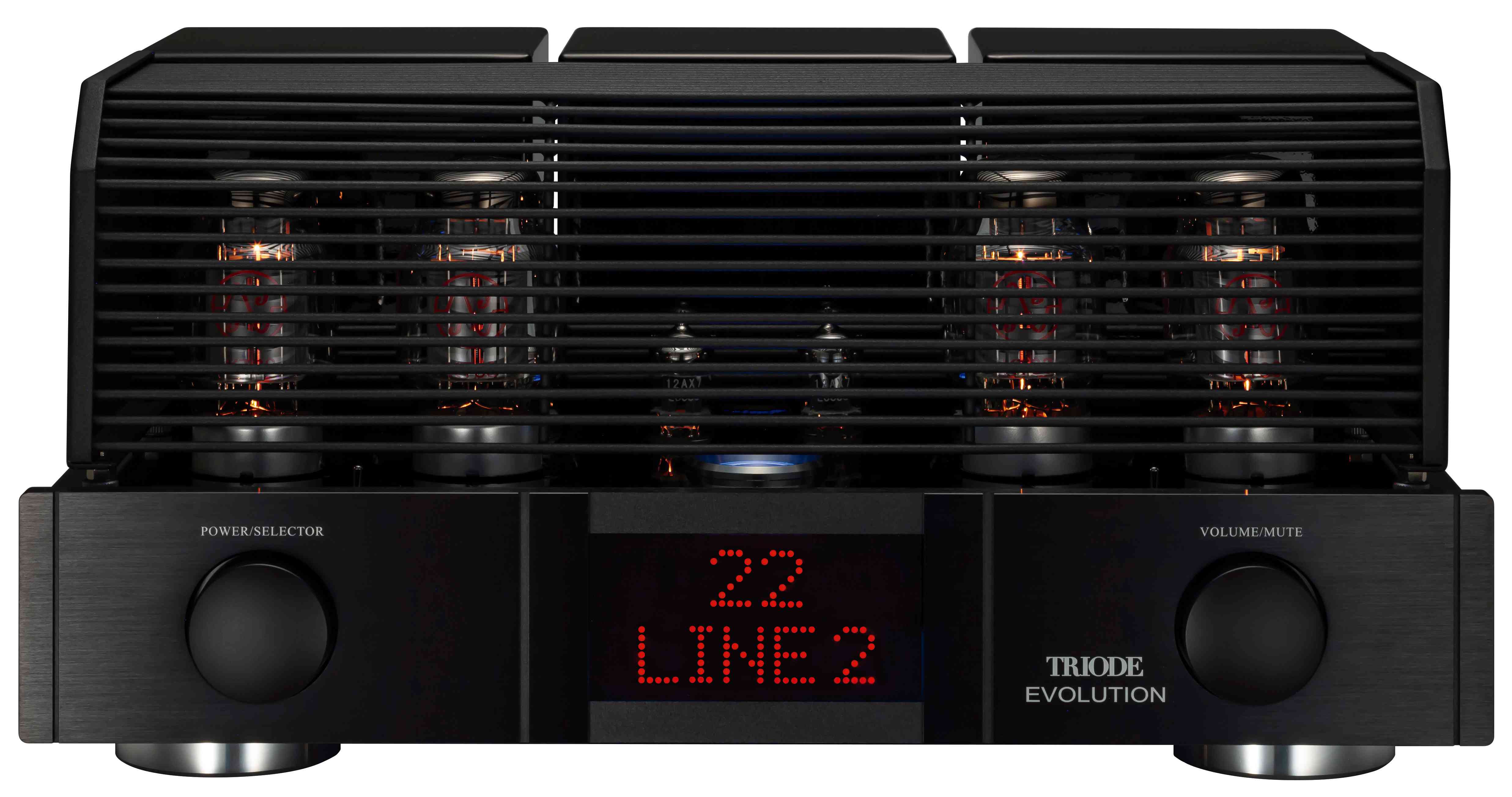

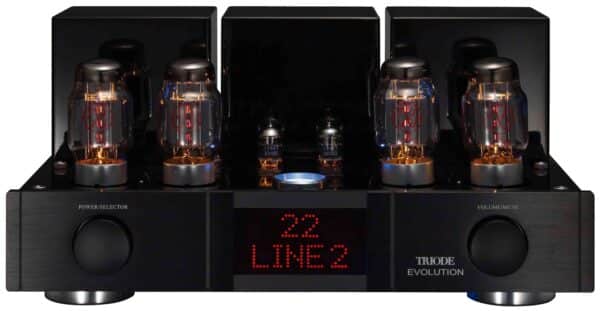

EVOLUTION NEW
KT88 class AB push-pull integrated amplifier
Circuit system | KT88 class AB push-pull integrated amplifier |
Tubes | KT88 x 4, 12AX7 x 2, 12AU7 x 2 |
Bias | Fixed bias, adjustable with bias meter |
Output power | 40W+40W at 8 ohms |
Frequency response | 17Hz-63kHz(-2dB) |
S/N ratio | 93dB |
Input sensitivity | LINE 320mV, MAIN IN 670mV |
Input impedance | LINE 100k ohm, MAIN IN 100k ohm |

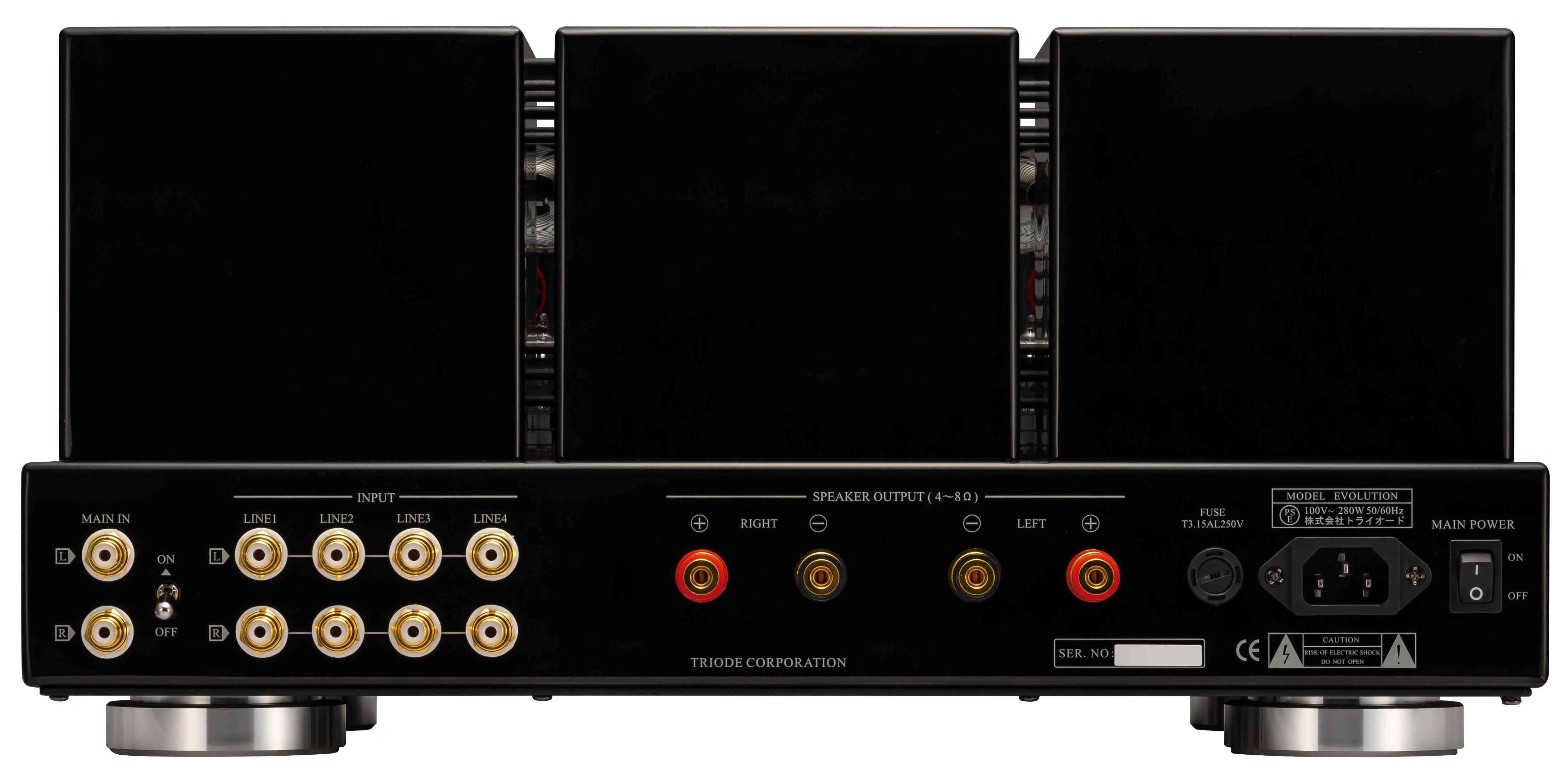

Input terminals | RCA unbalanced x 5(LINE1-4 , MAIN IN x 1) |
Output terminals | – |
Speaker output terminals | 4 ~8 ohms |
Equipped components | High quality speaker terminal |

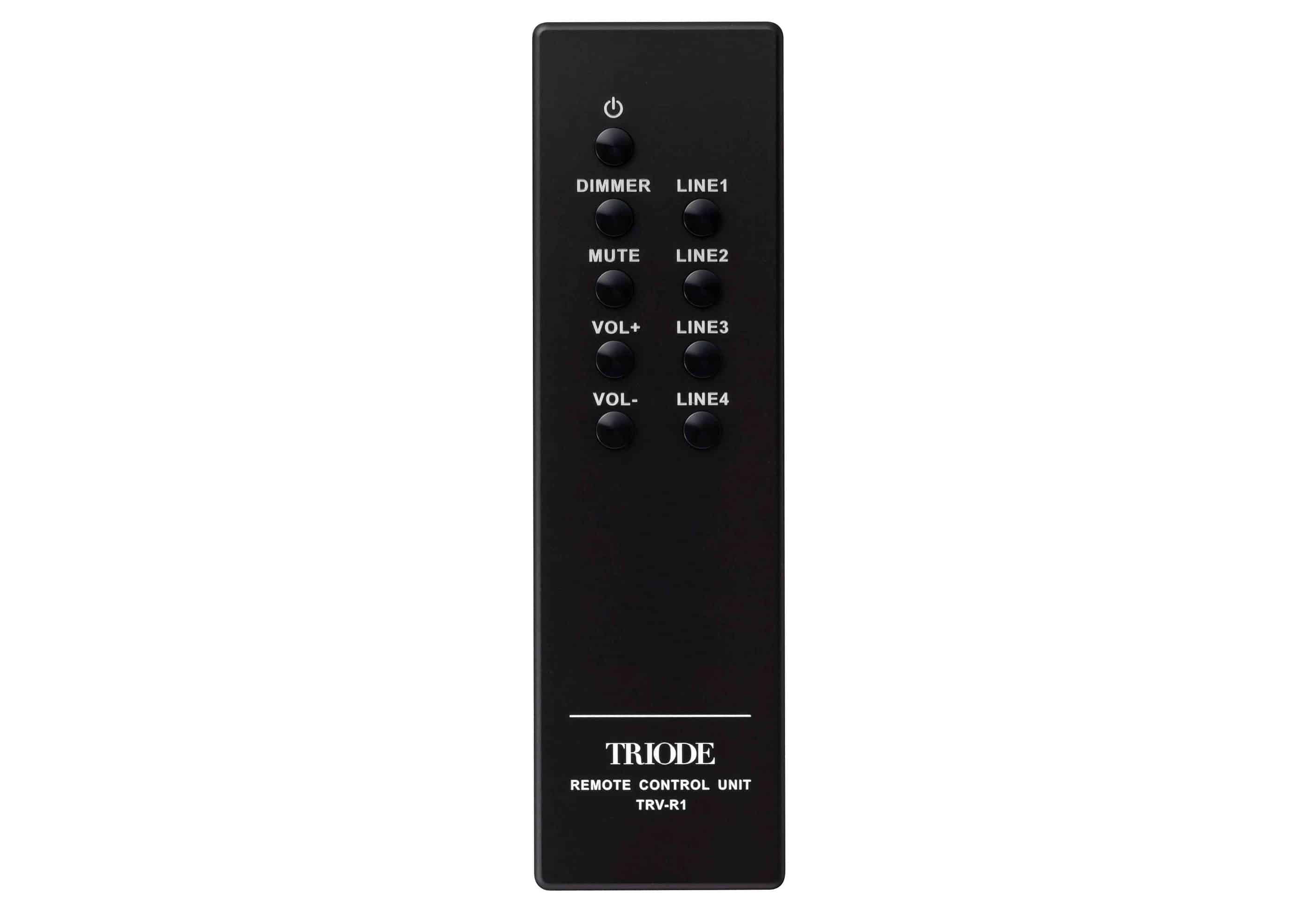

Other functions | Remote control (Standby/On, Volume , Mute, Input select, Dimmer) Bias adjuster with bias meter |
Power consumption | 310W (170W/No signal) |
Dimensions | W440mm x D330mm x H210mm |
Weight | 30.0kg |
Accessories | Tube cover, Remote control |
